The 2WD C10 Lift Kit Solution Everyone’s Been Waiting For

Chris Hamilton . April 22, 2026 . Tech . CHRIS HAMILTON
Save ArticleLogin to save it

AS SEEN IN OUR C10 BUILDERS GUIDE SUMMER 2026 ISSUE – Buy Now!

The Parts, Process & Result

If you own a 1973–’87 two-wheel-drive Chevy truck, chances are you’ve had the same thought at some point: “Man, I wish I could lift this thing.” Almost immediately, you likely encountered the same challenge as everyone else: the lack of a suitable off-the-shelf lift kit. Plenty of companies offer kits to lower these trucks, but when it comes to lifting a two-wheel-drive squarebody, the aftermarket has mostly shrugged and walked away. That’s exactly the problem we set out to solve with Project Rocky, our 1979 Chevy C10.

Web Campaign

We didn’t want a hacked-together spacer lift or a sketchy combination of parts that would ruin ride quality or alignment. We wanted a proper, safe, and driveable lift that could handle real road miles, real braking, and real use, all while keeping the truck in the 2WD world.

Subscribe to our weekly newsletter

What you’re about to see in this tech series is the result of a lot of research, parts cross-referencing, measuring, and problem-solving. We figured out how to combine 1988–’98 truck components, lift spindles, custom-matched suspension pieces, and the right brake parts to create a setup that nets around four to five inches of lift over stock without compromising safety or drivability.

Our list is a real-world, bolt-on solution built from parts you can actually order, using part numbers you can reference, and techniques you can repeat in your garage or shop. We’re even providing a complete parts spreadsheet you can download so you don’t have to play the same guessing game we did.

Just as important, this setup keeps the truck alignable, stops properly thanks to a full brake upgrade, and rides like a classic truck should—not like a science experiment. So, if you’ve been staring at your squarebody wishing it sat a little taller, cleared bigger tires, and had more presence without swapping to four-wheel-drive, this article is for you. This is how we finally cracked the code on lifting a 2WD squarebody, and how you can too.

2WD 73-87 CHEVY C10 LIFT KIT PARTS LIST

Here is the official parts list we used for our 1979 Chevy C10. This gave us between 4 and 5 inches of lift from the factory height. You can download this spreadsheet by scanning the QR code.
2WD C10 Lift Kit

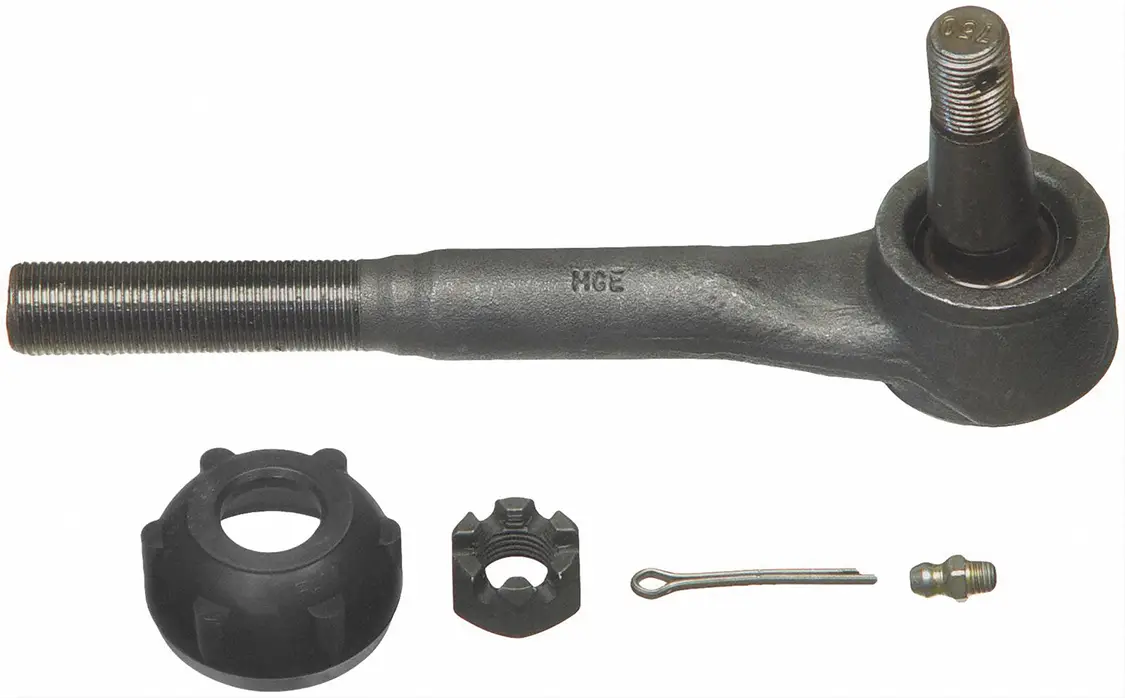

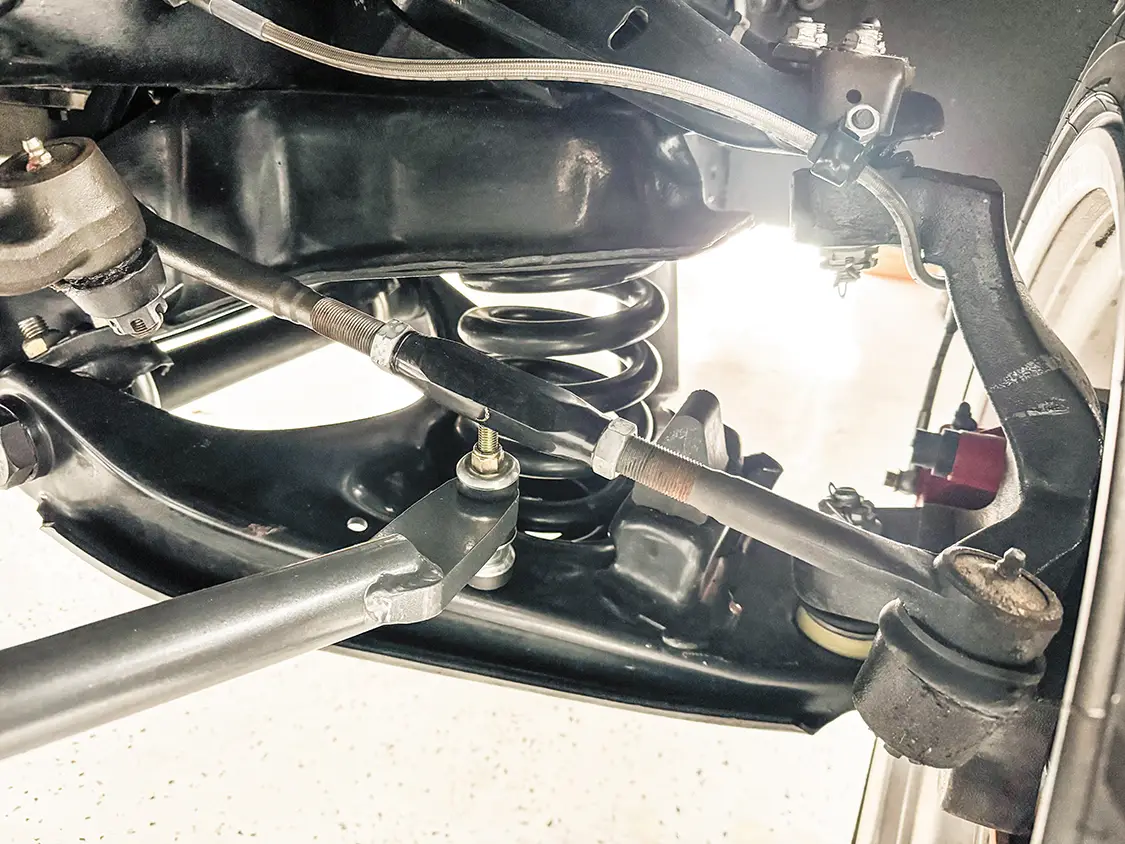

For our inner and outer tie rod ends, we used Moog part number ES409LT for 1973-’87 Chevy trucks.
2WD C10 Lift Kit

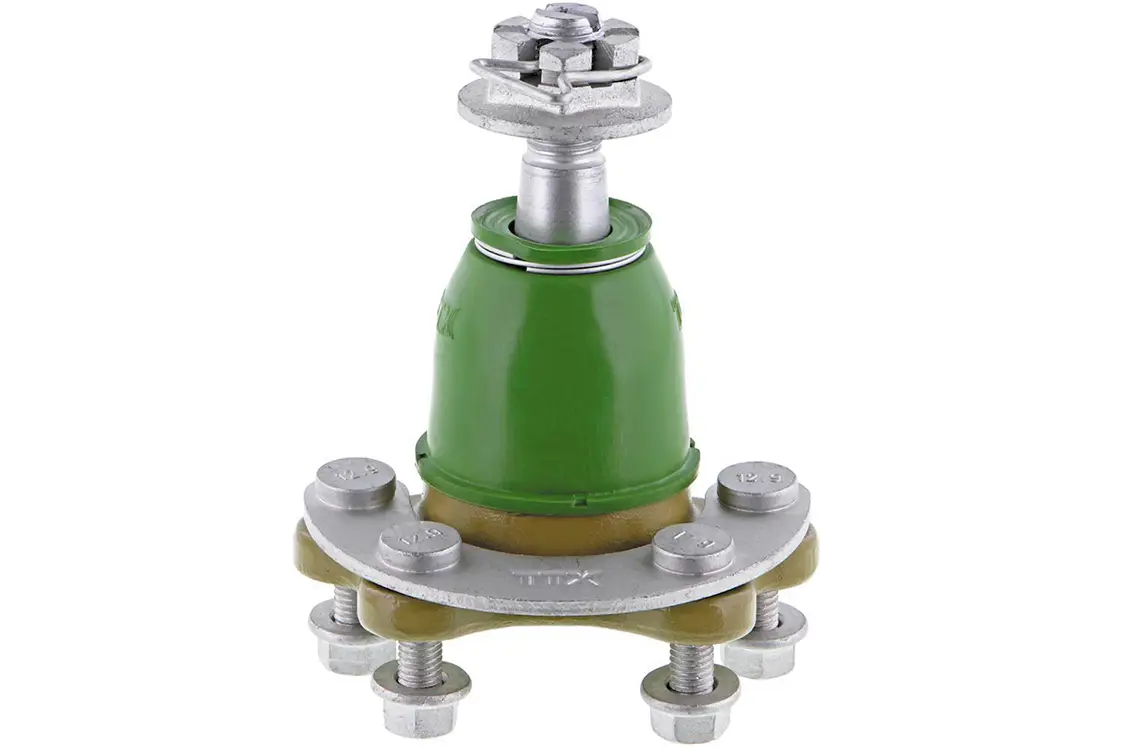

The upper and lower ball joints are from a 1988-’98 Chevy truck. The part numbers are Raybestos PG 5001062 for the uppers and 50511134 for the lowers. Note that the original ball joints are riveted in and can be drilled or ground off. The new ball joints bolt on.

2WD C10 Lift Kit

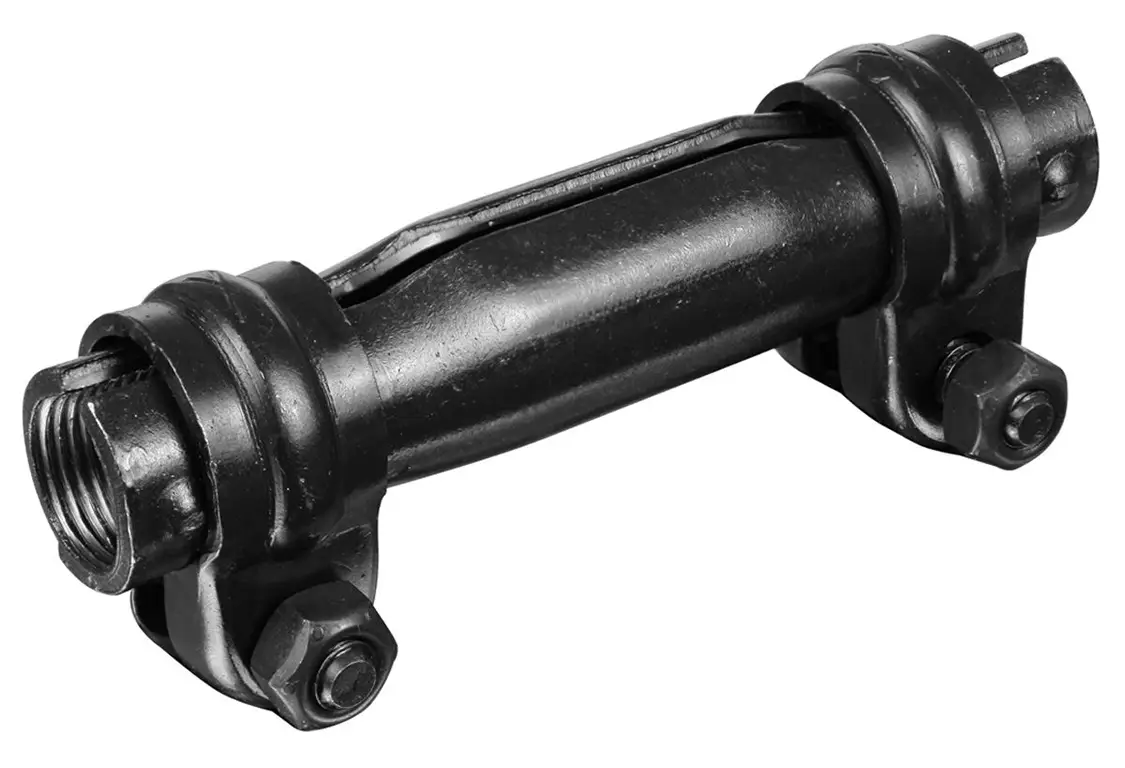

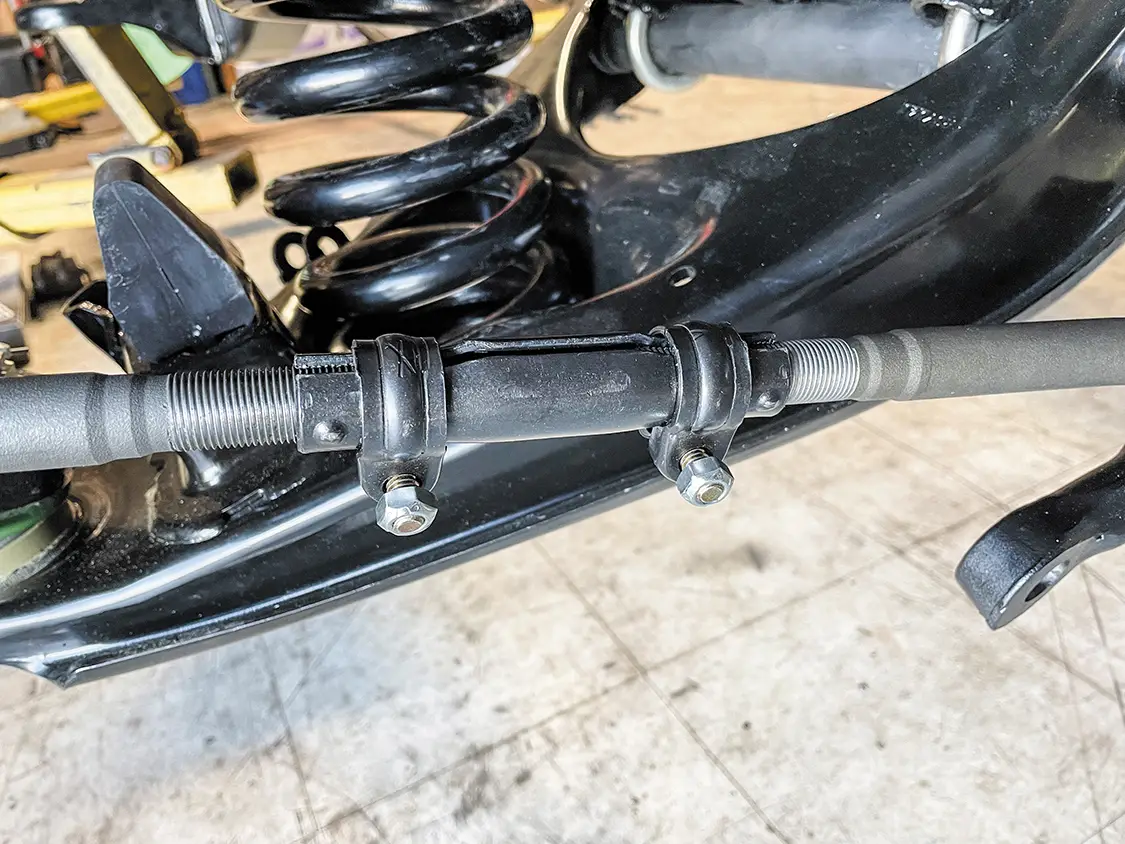

The tie rod adjusting sleeves we used are for a 1973-’87 Chevy truck. The part number is Moog PGES2004S. You will need two of these, or you can reuse your factory sleeve if desired.

2WD C10 Lift Kit

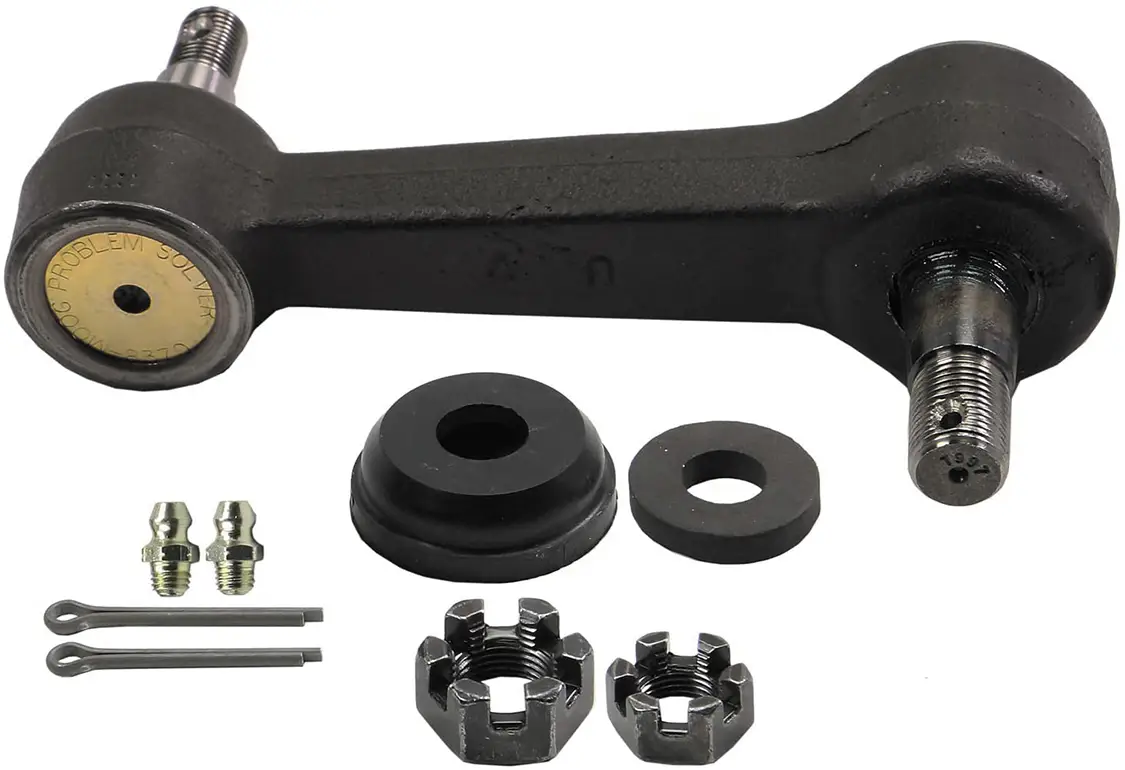

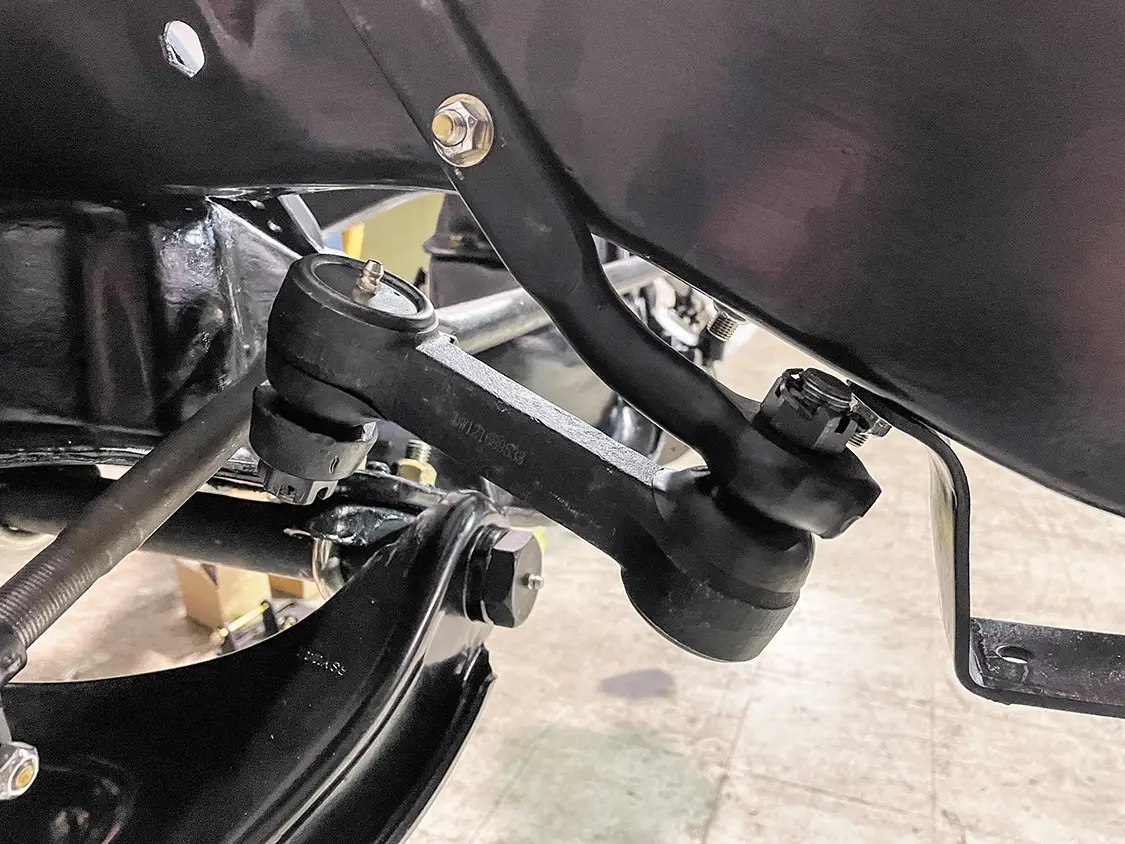

You will also need a Pitman arm for a 1973-’87 Chevy truck. The part number is Raybestos PG4451007.

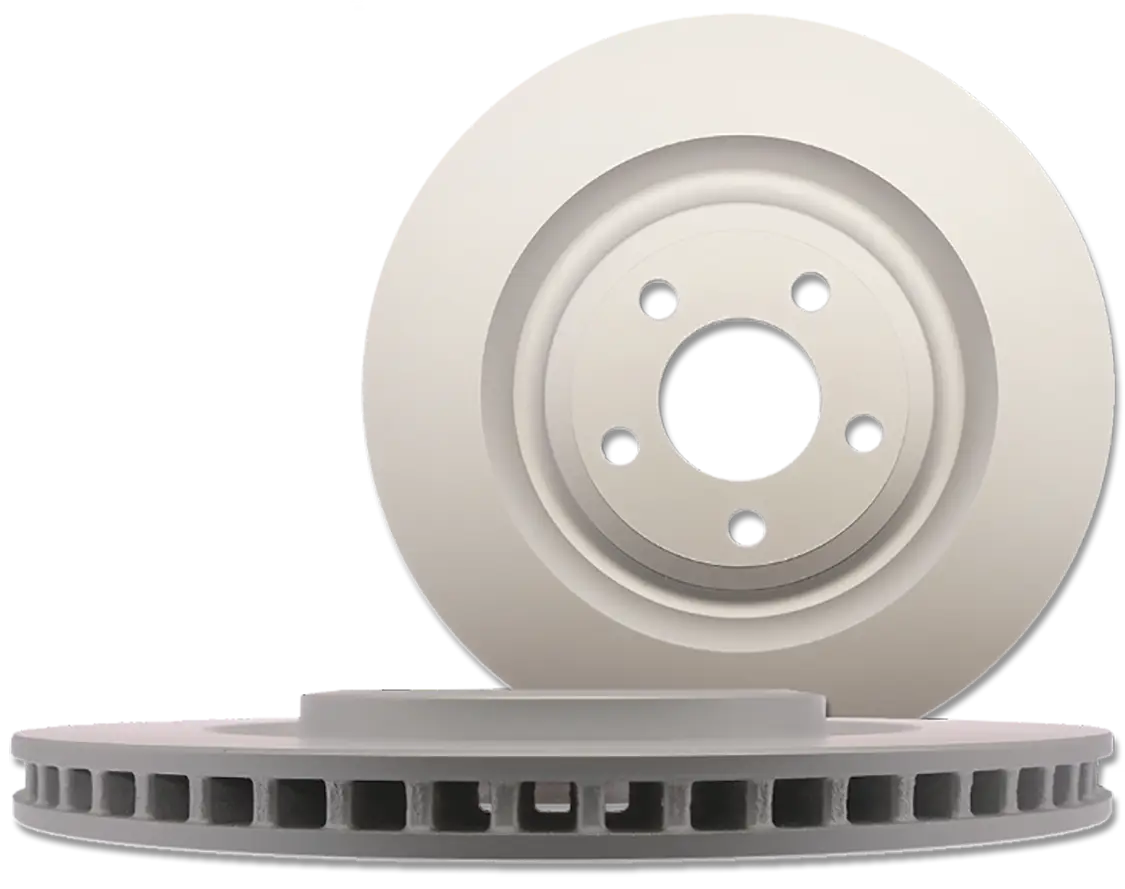

The brakes are specific. For the front, 5-lug brake rotors for 1988-’98 trucks need to be used. The part number is Raybestos PG 569158R. In the rear, 5-lug rotors for 1992-’98 models are needed. Raybestos PG8004R2 is the correct part number.

2WD C10 Lift Kit

2WD C10 Lift Kit

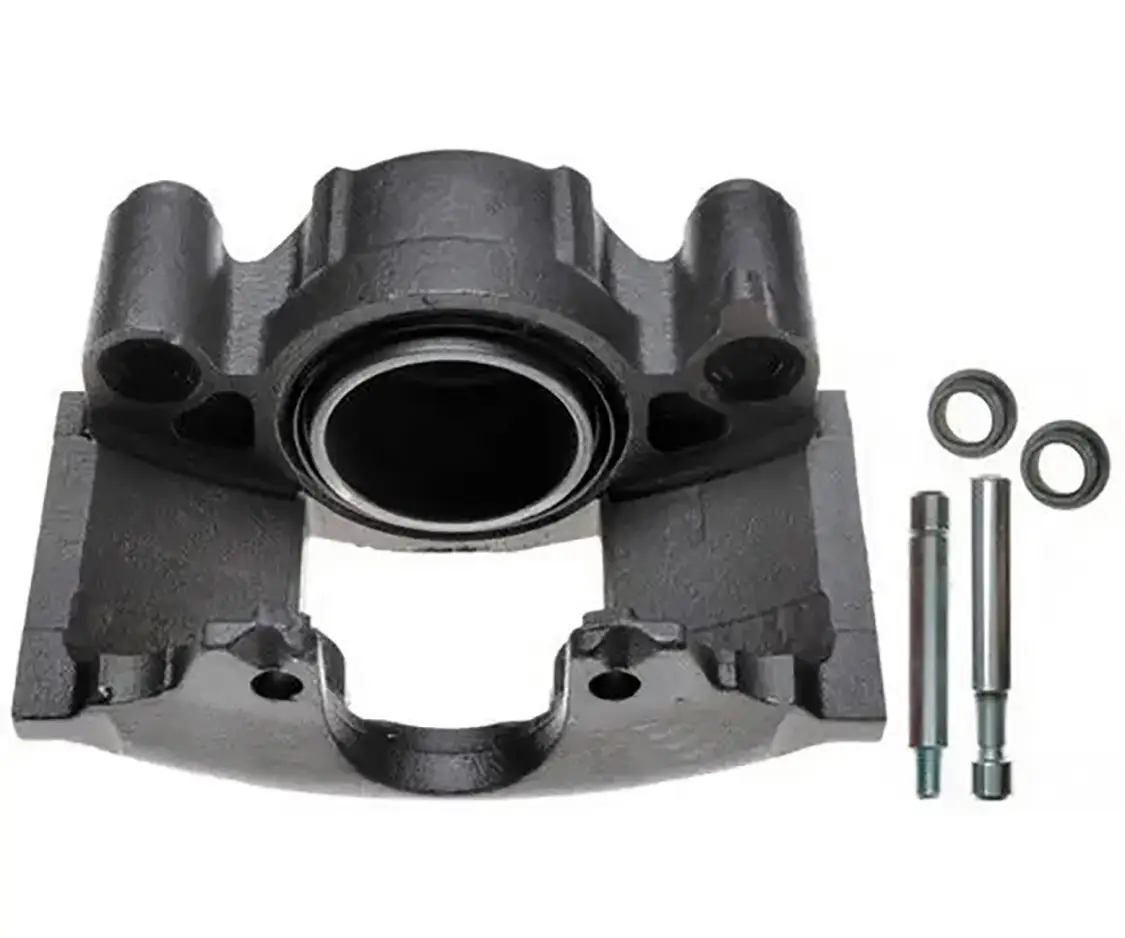

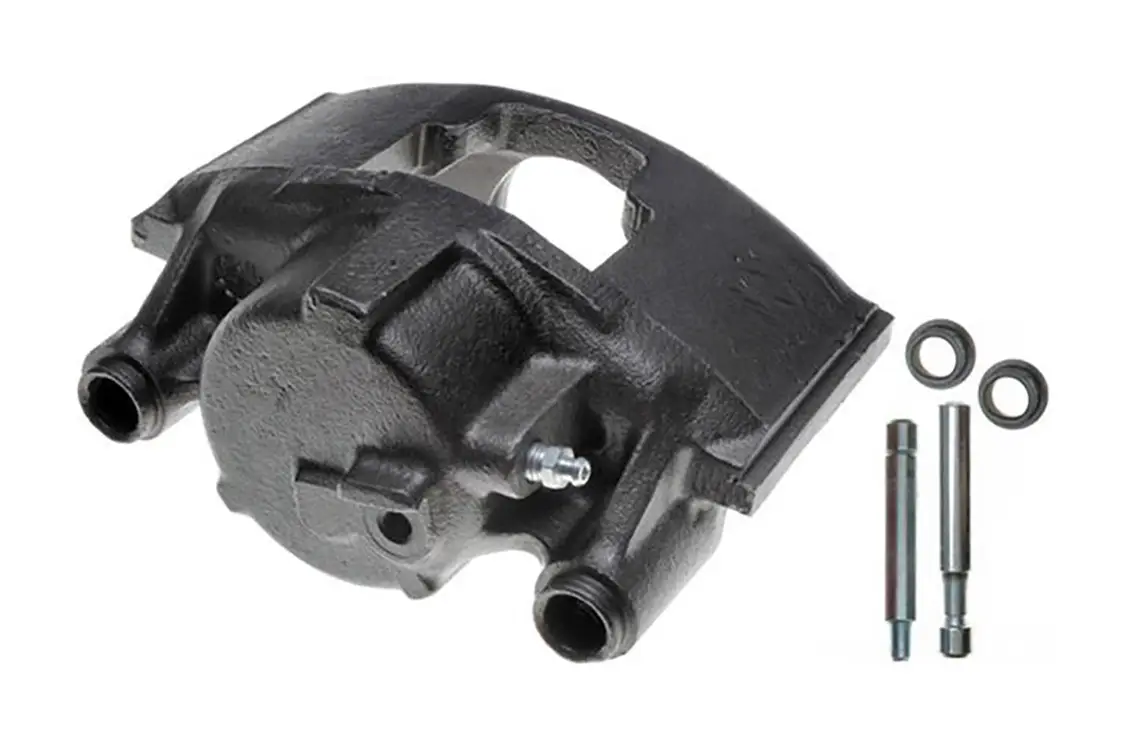

The brake calipers are also 1988-’98 specific. We used Raybestos PG FRC4418 for the left and Raybestos PG FRC4417 for the right side.

2WD C10 Lift Kit

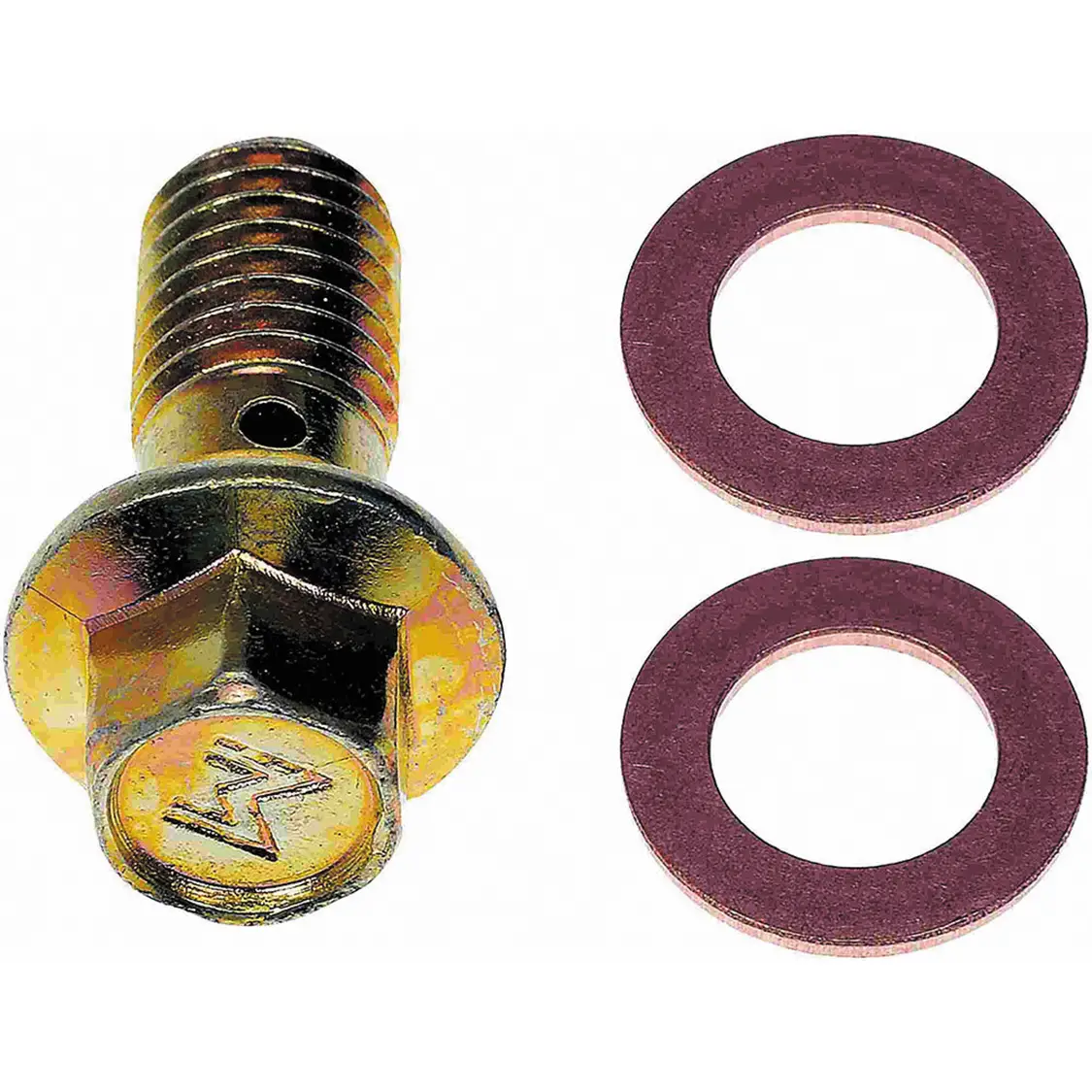

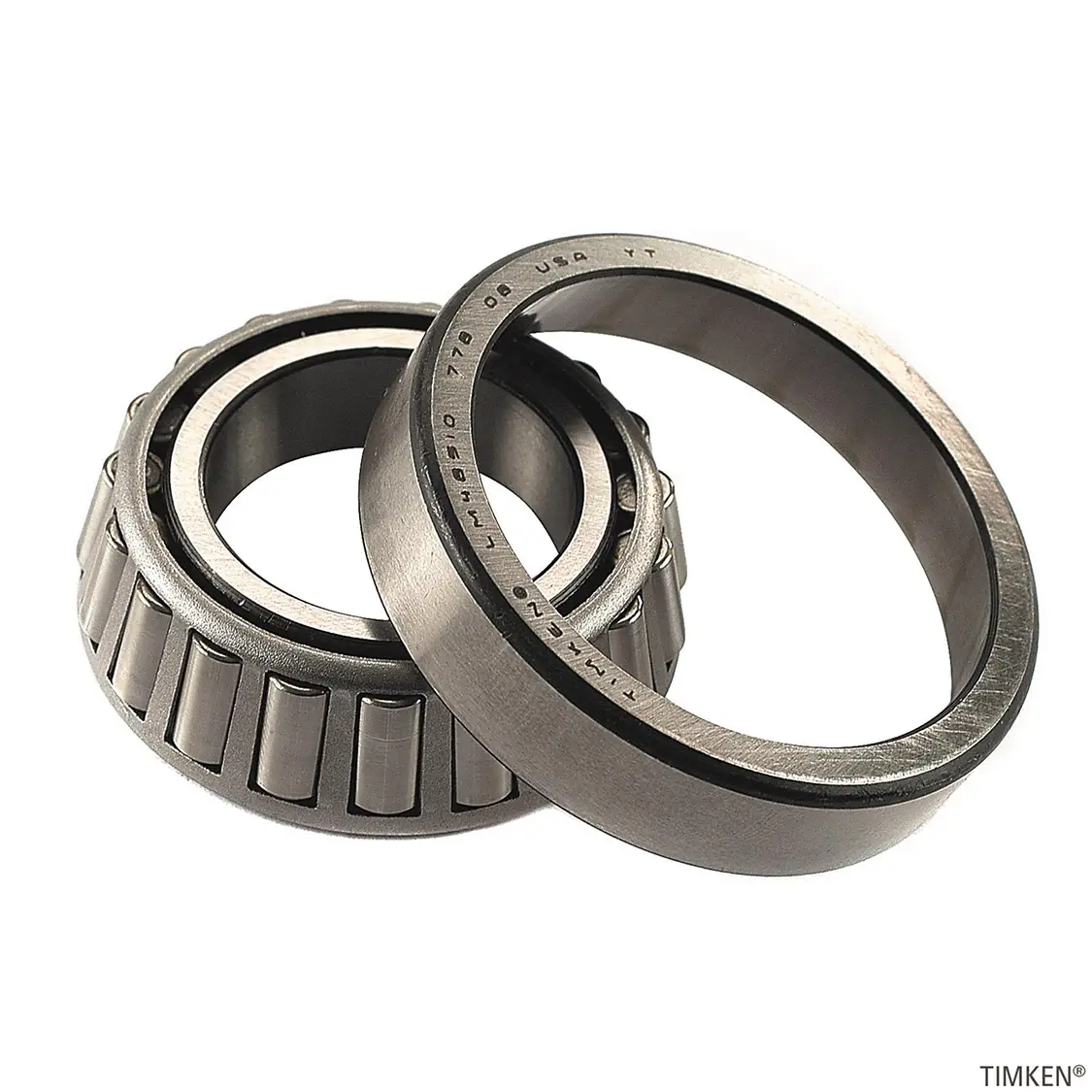

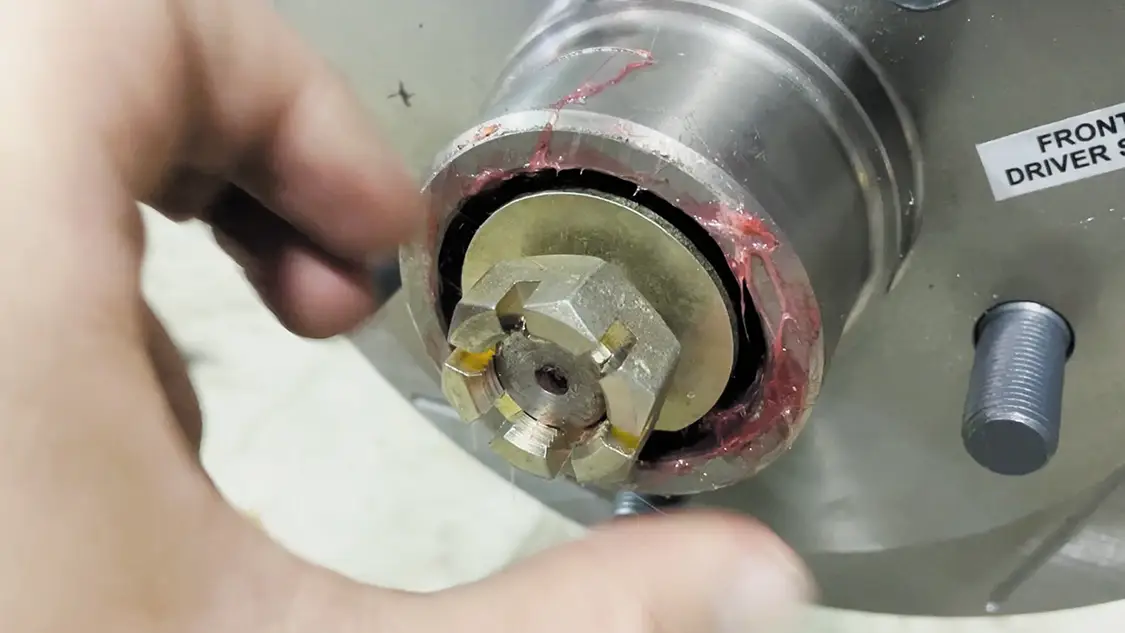

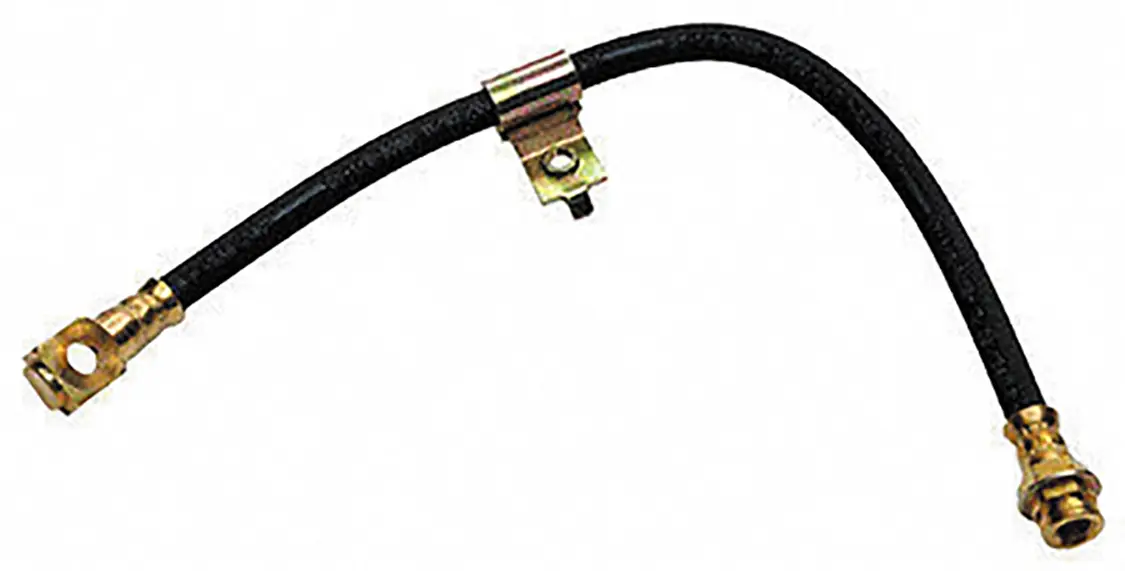

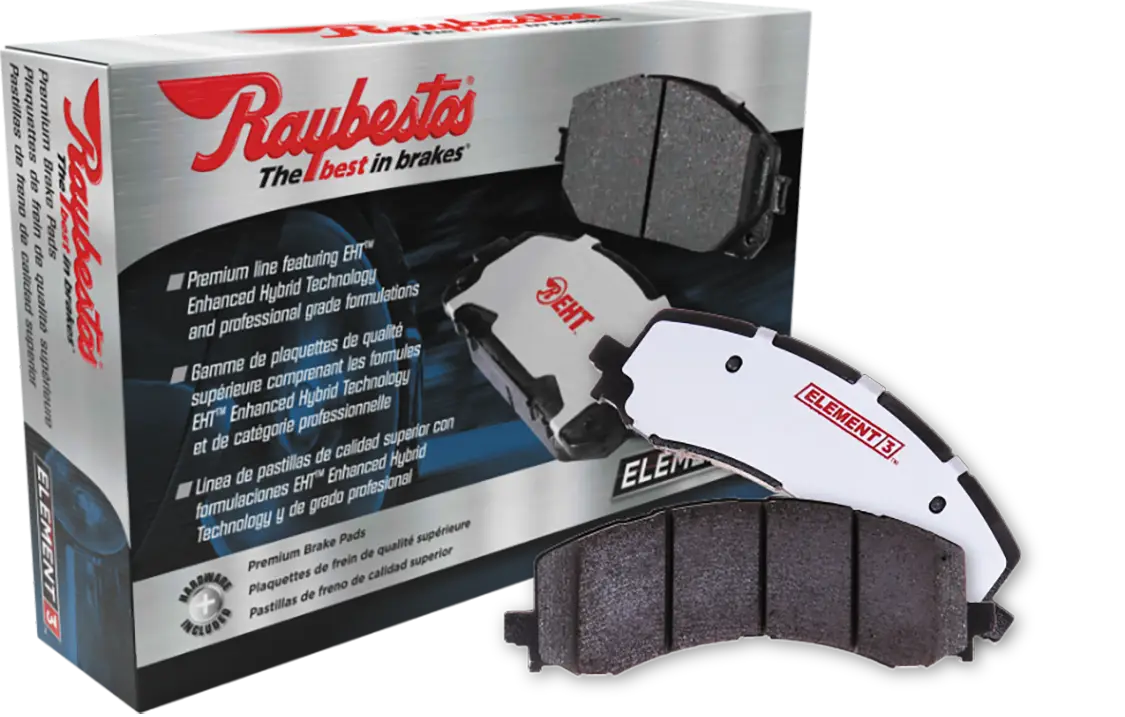

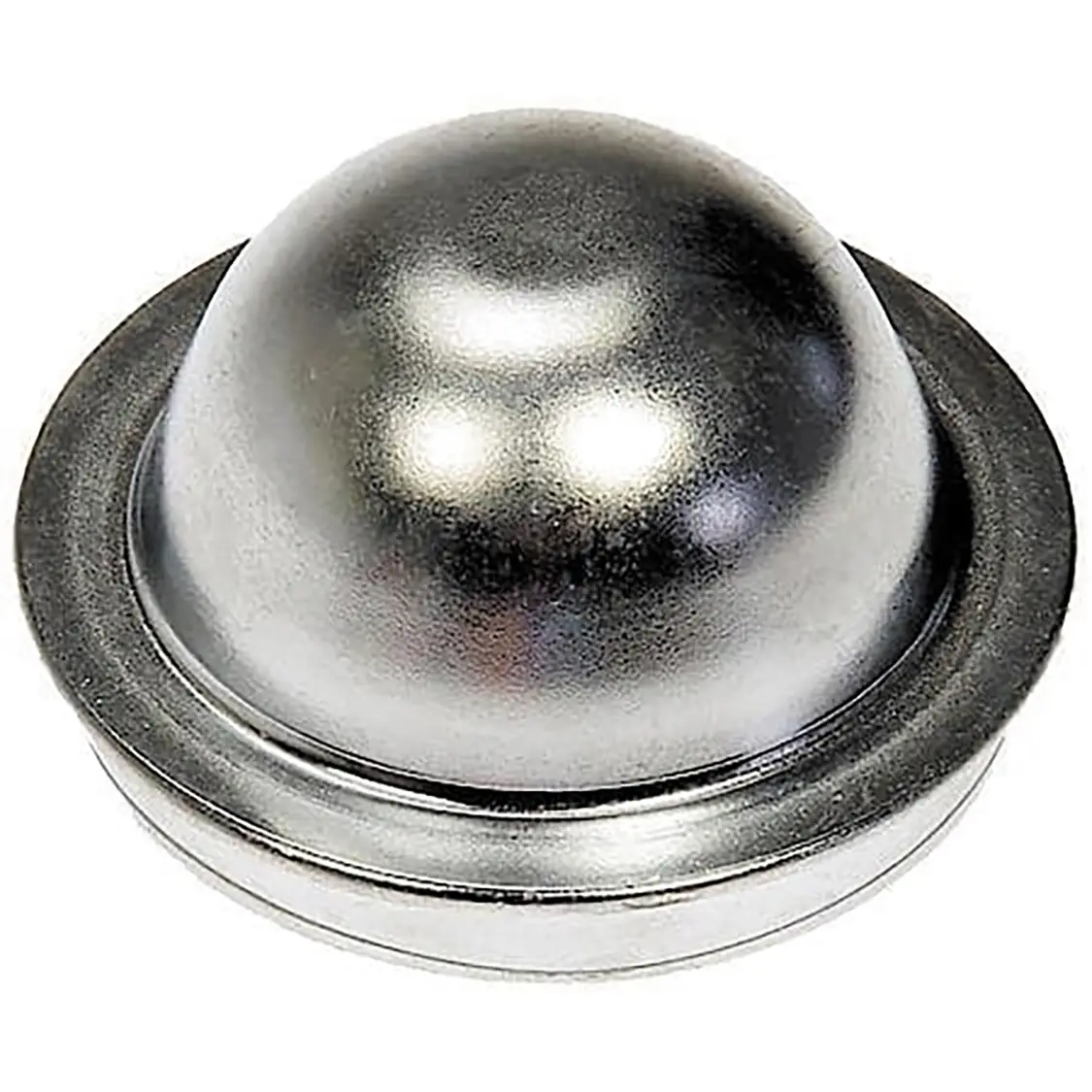

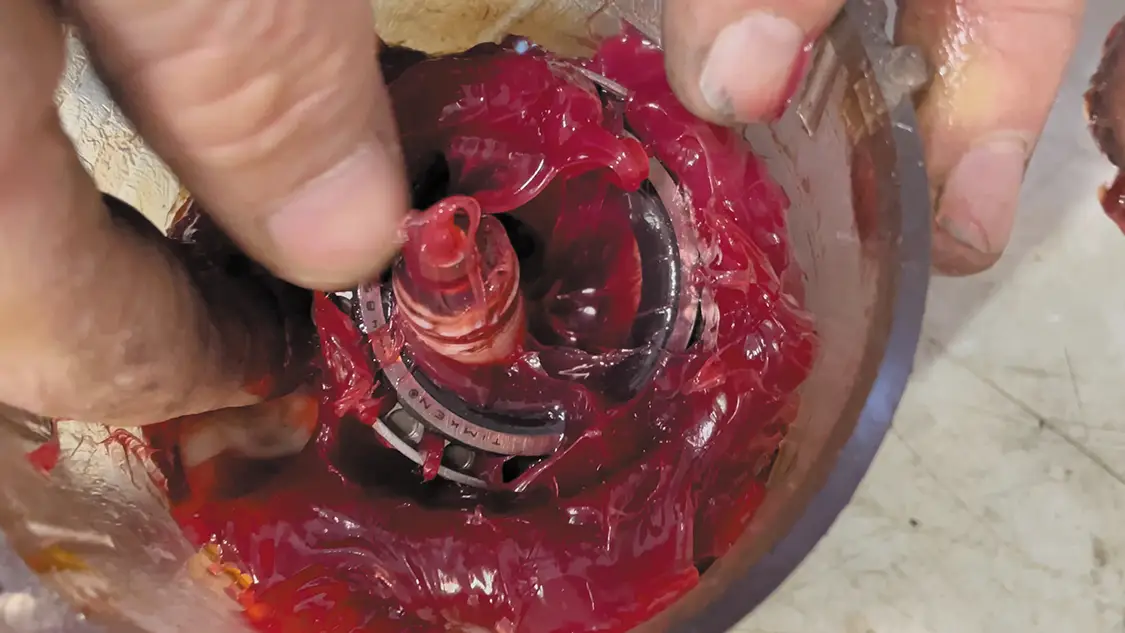

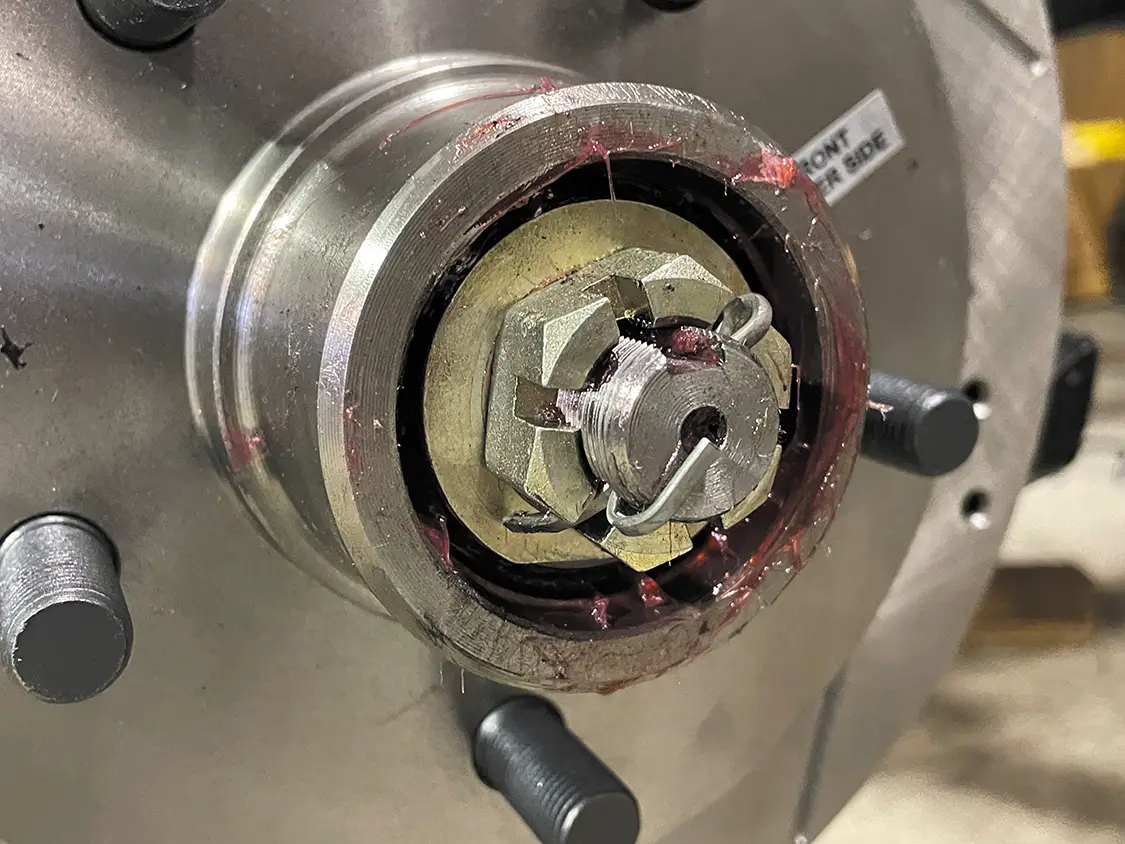

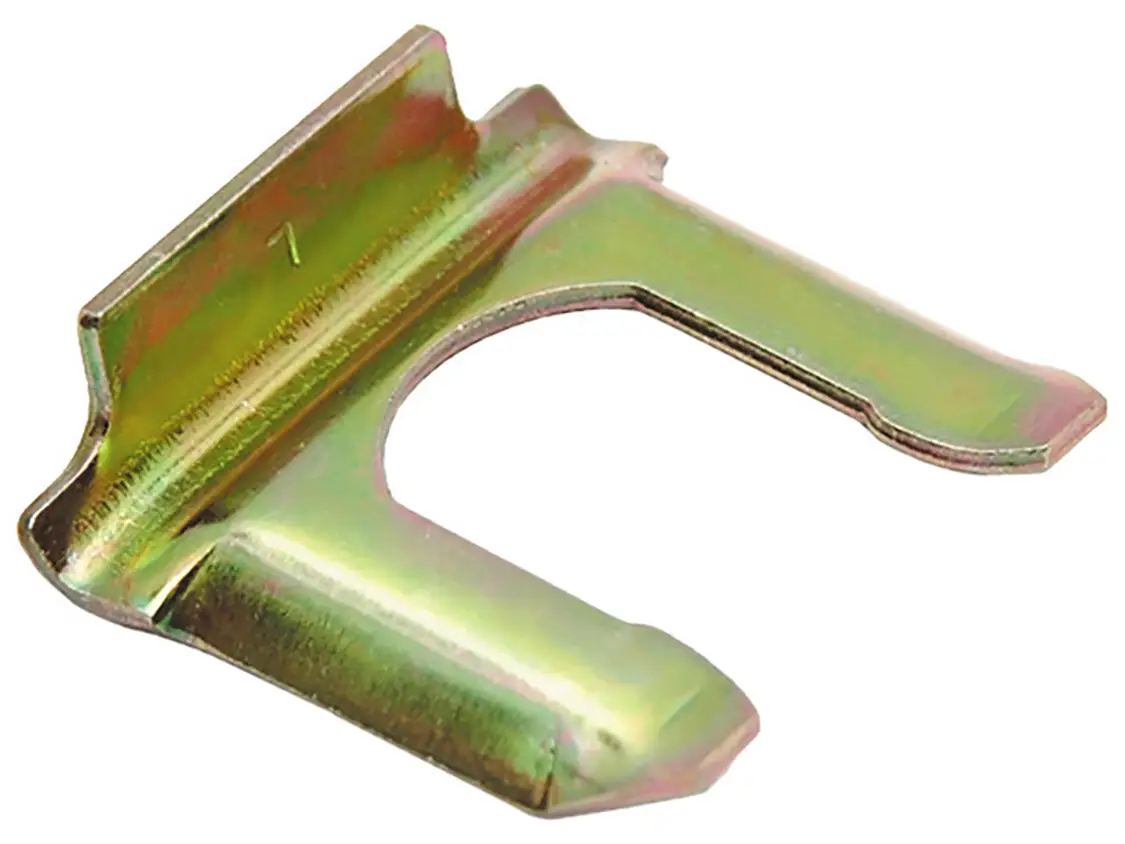

The rest of the brake parts we used include 1988-’98 brake pads, the left side brake hose is Raybestos PG BH38620, the right side is Raybestos PG BH38621, the brake hose clip part number is Raybestos PG H1457-2, the banjo bolt is Dorman 484-205.1, the inner wheel bearings are Timken Set 5, the outer wheel bearings are Timken Set 3, you will need the spindle nuts from Dorman 5145, and the dust cap is also from Dorman 618102.

2WD C10 Lift Kit

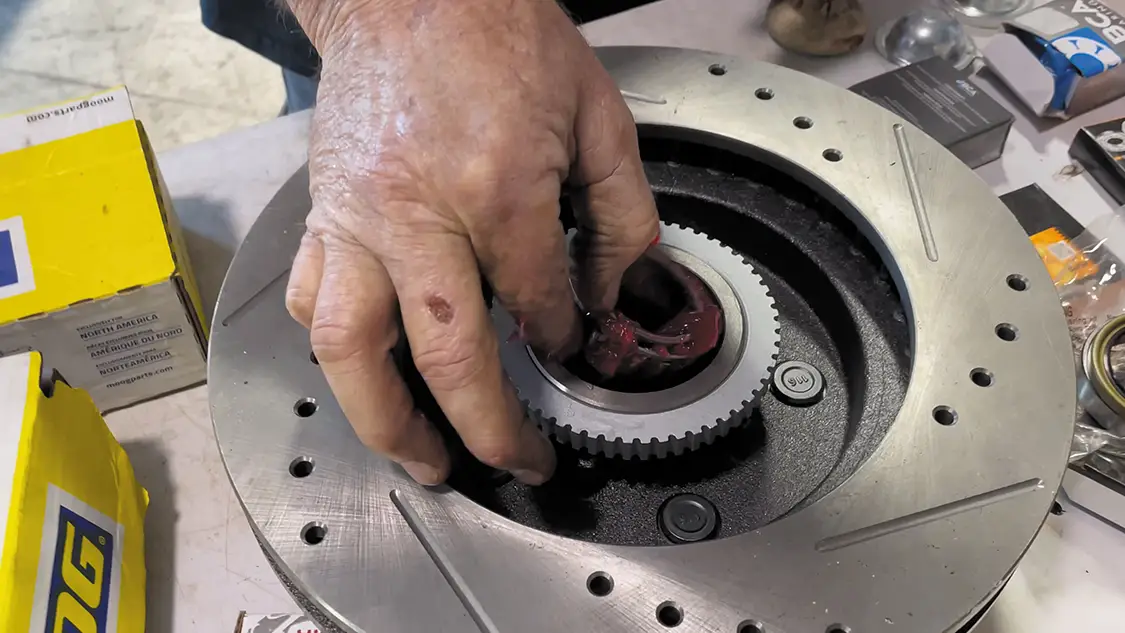

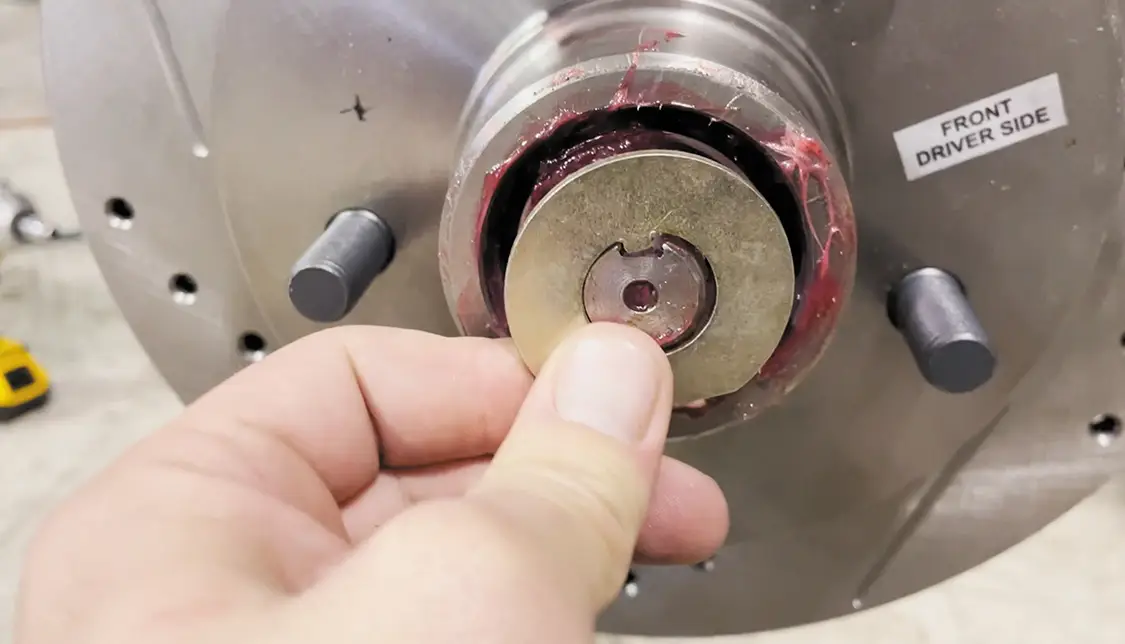

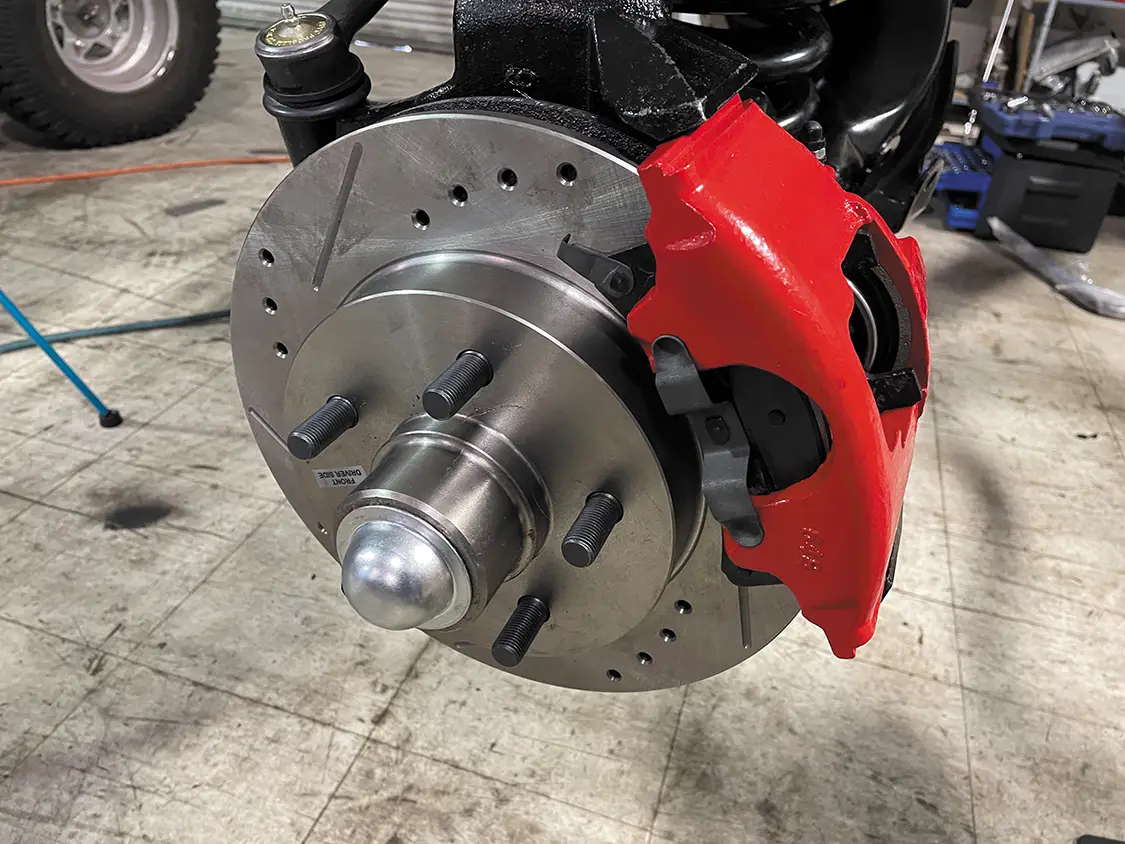

Here is the process of installing these parts to finalize our brake setup.

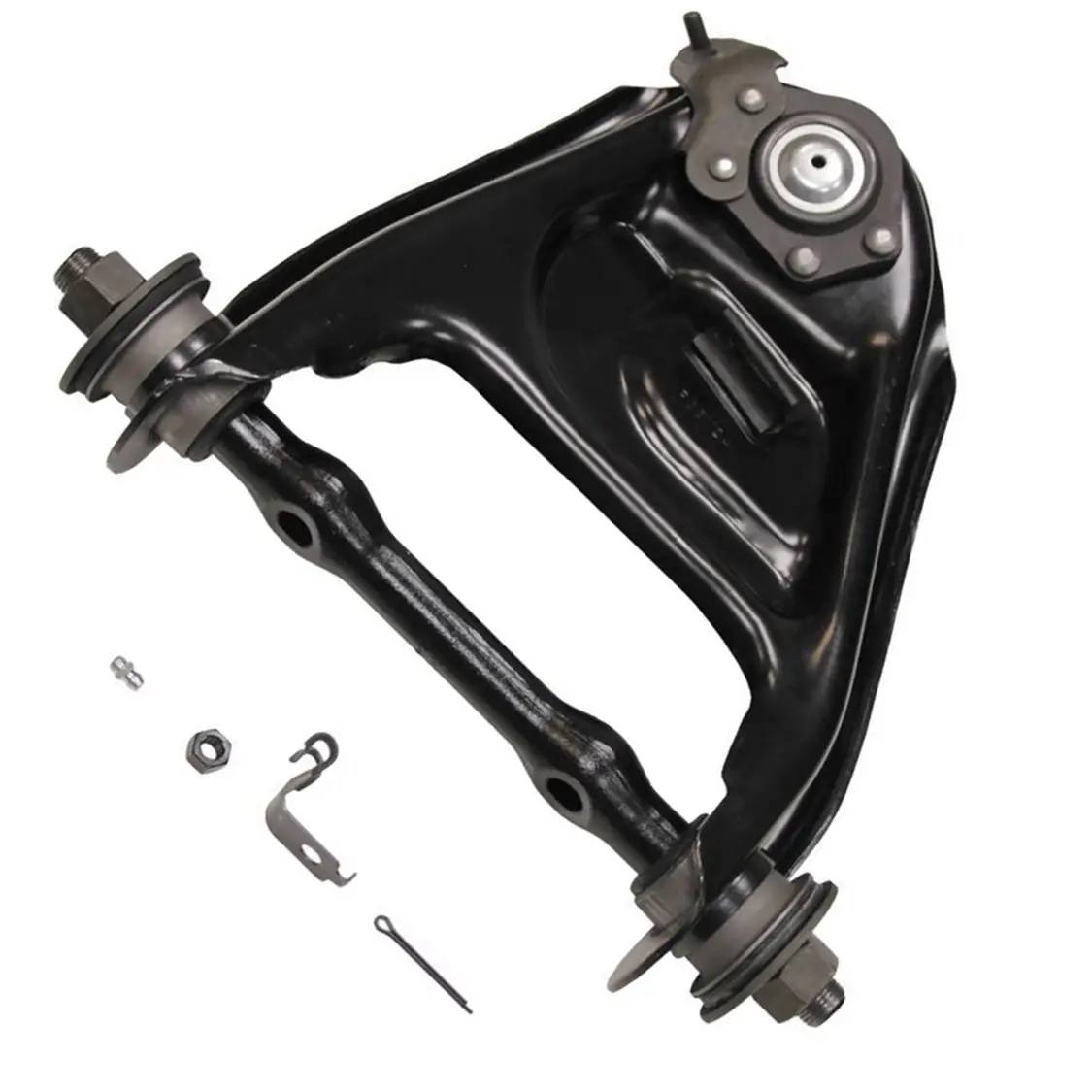

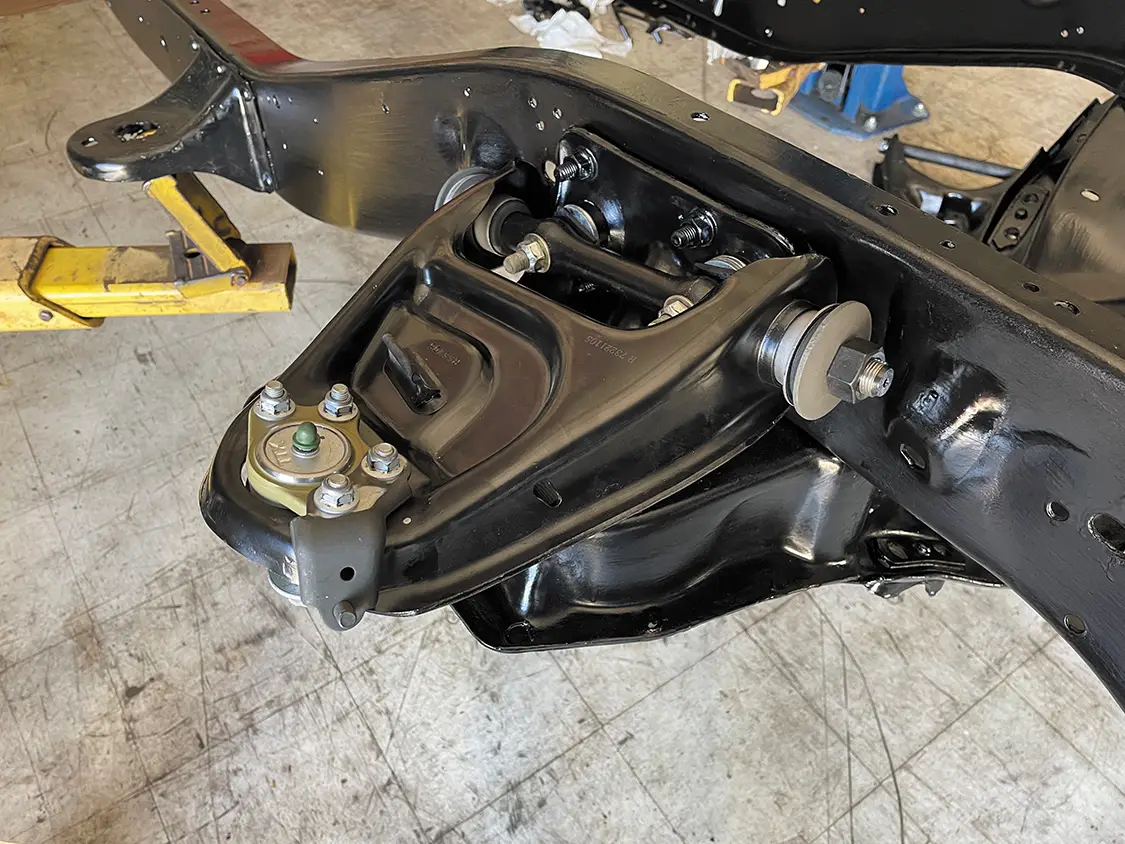

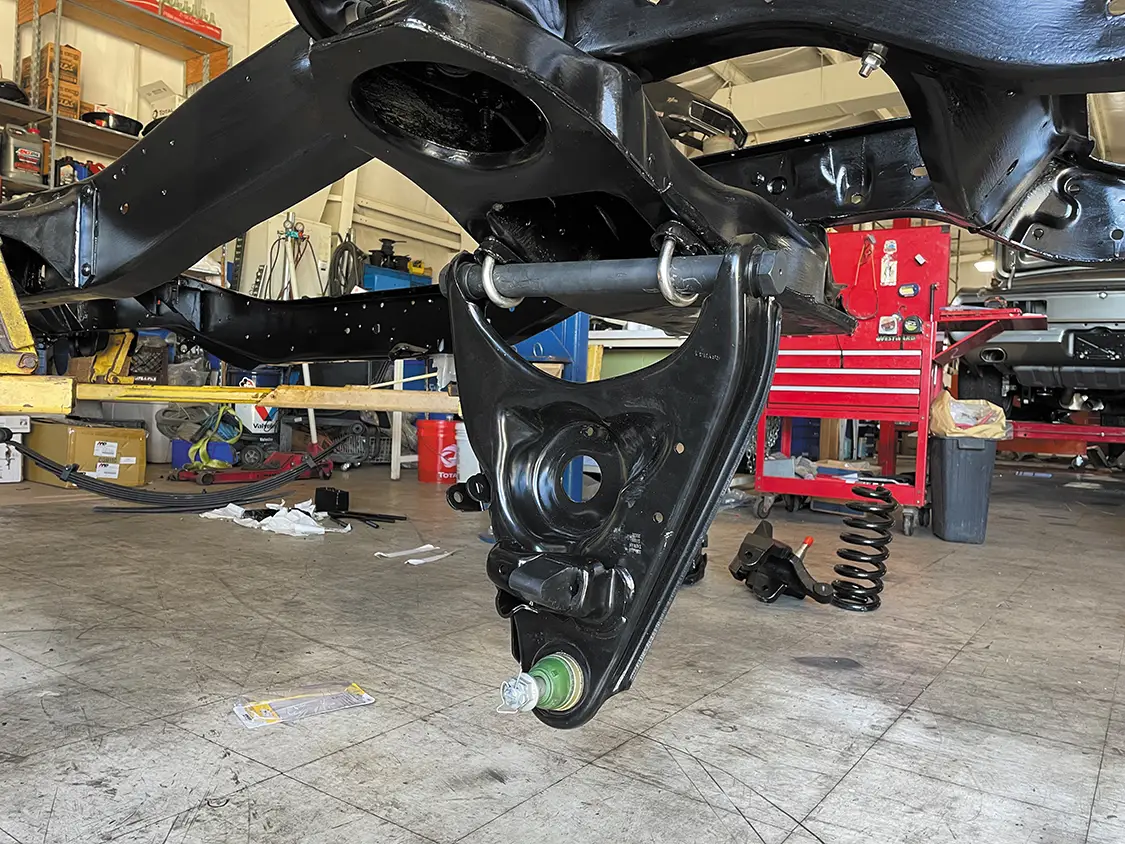

For the control arms, you will need Dorman 520113 for the left side from 1973-’87 (C20/30) and Dorman 520114 for 1973-’87 C20/30 trucks. These control arms include ball joints and bushings pre-installed. The ball joint needs to be removed as noted earlier.

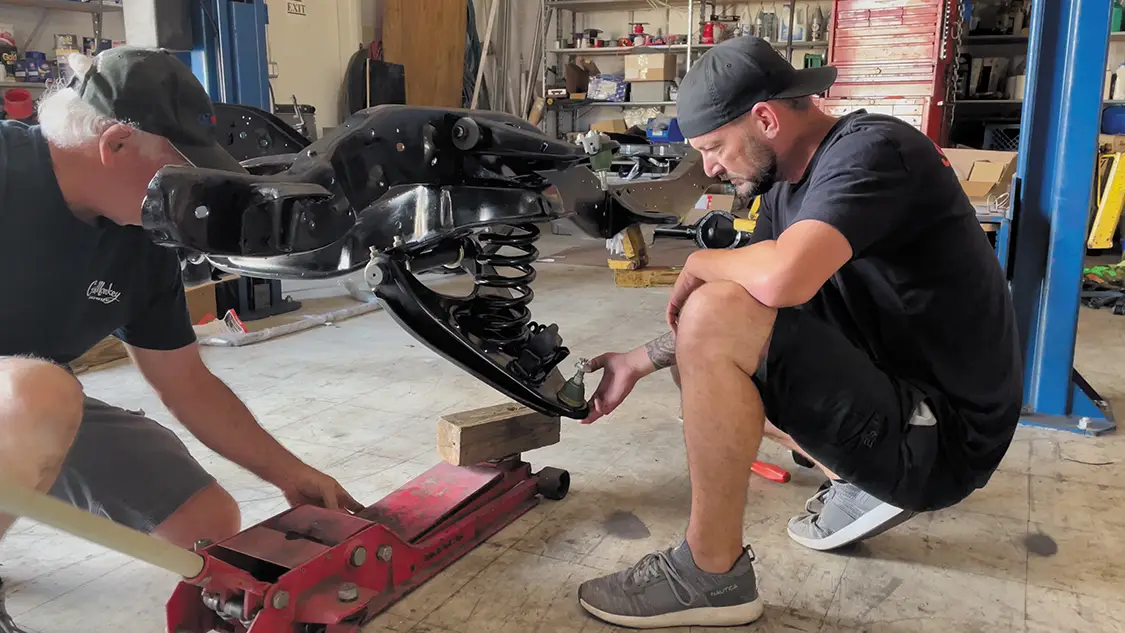

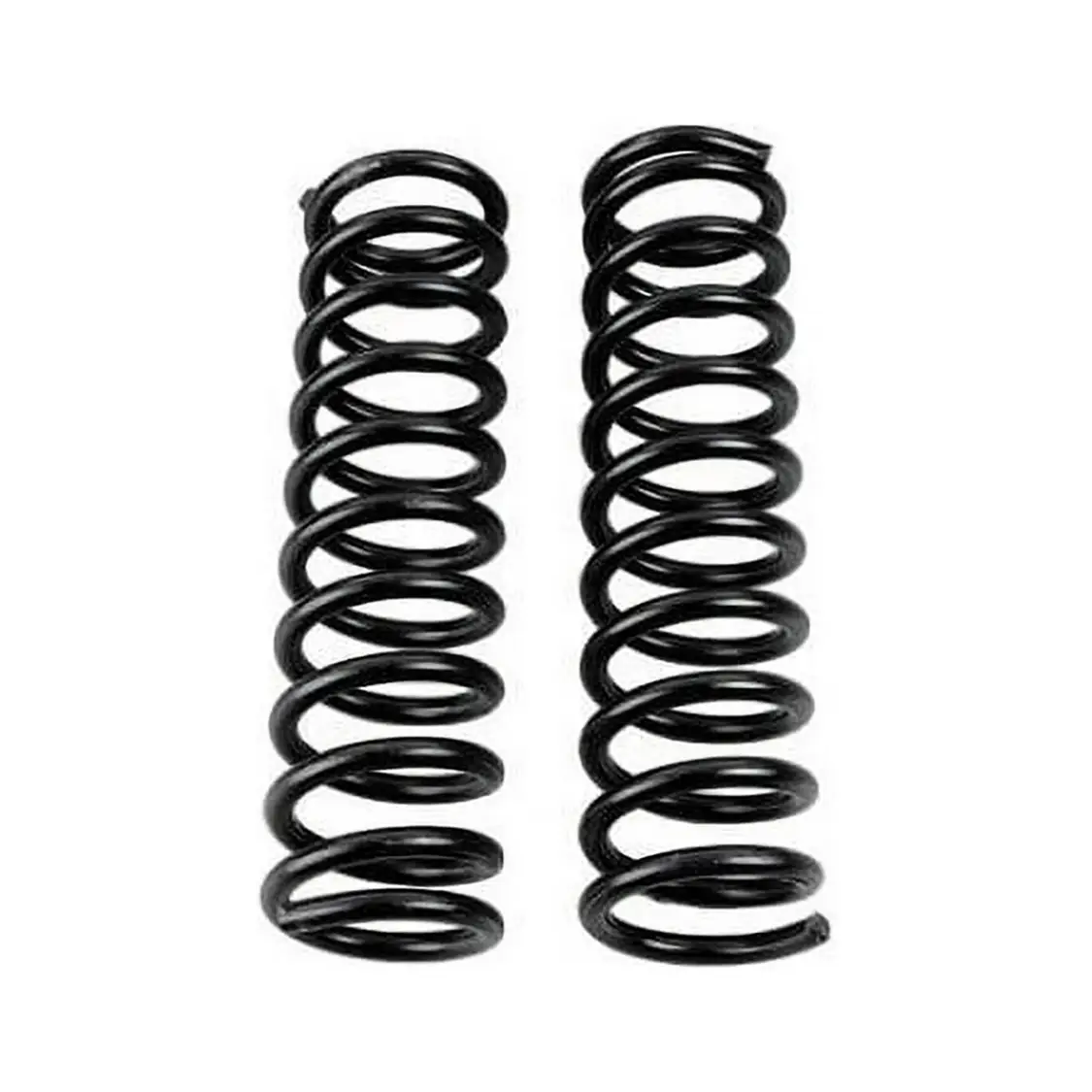

Finally, for the coil springs, order a set of Moog 6454 with a 1,060-lb spring rate for the right side and Moog 6454RT for the left side, which appears as a variant or alternate according to Moog.

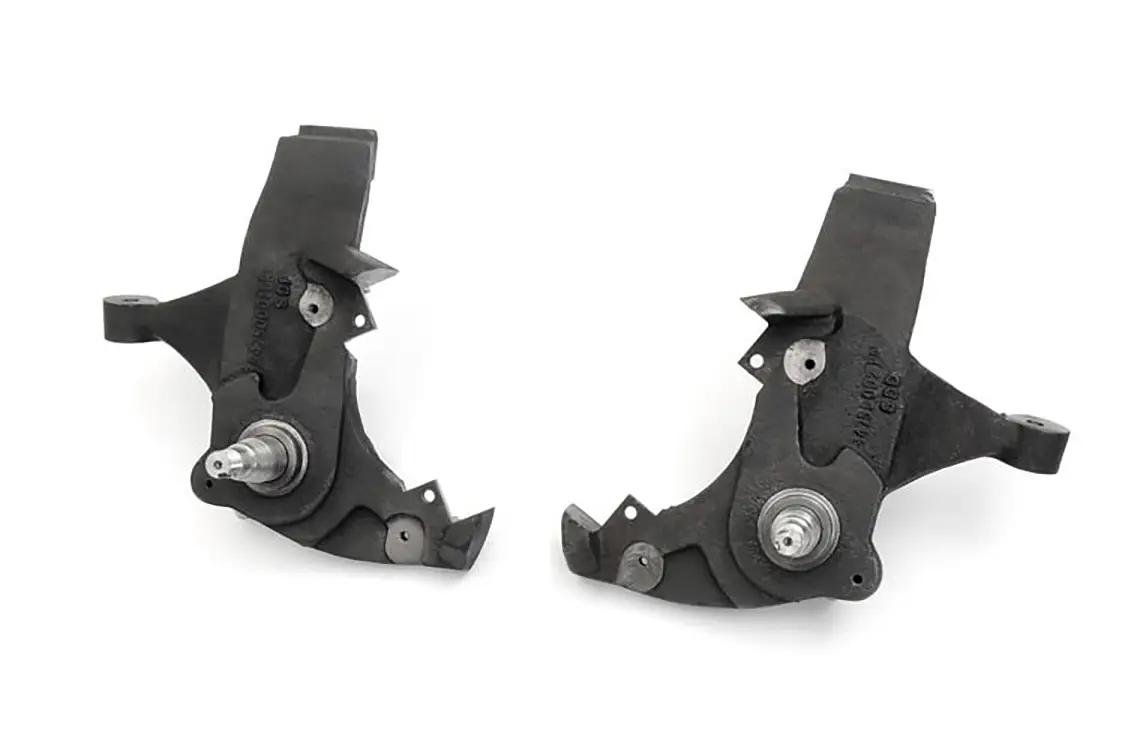

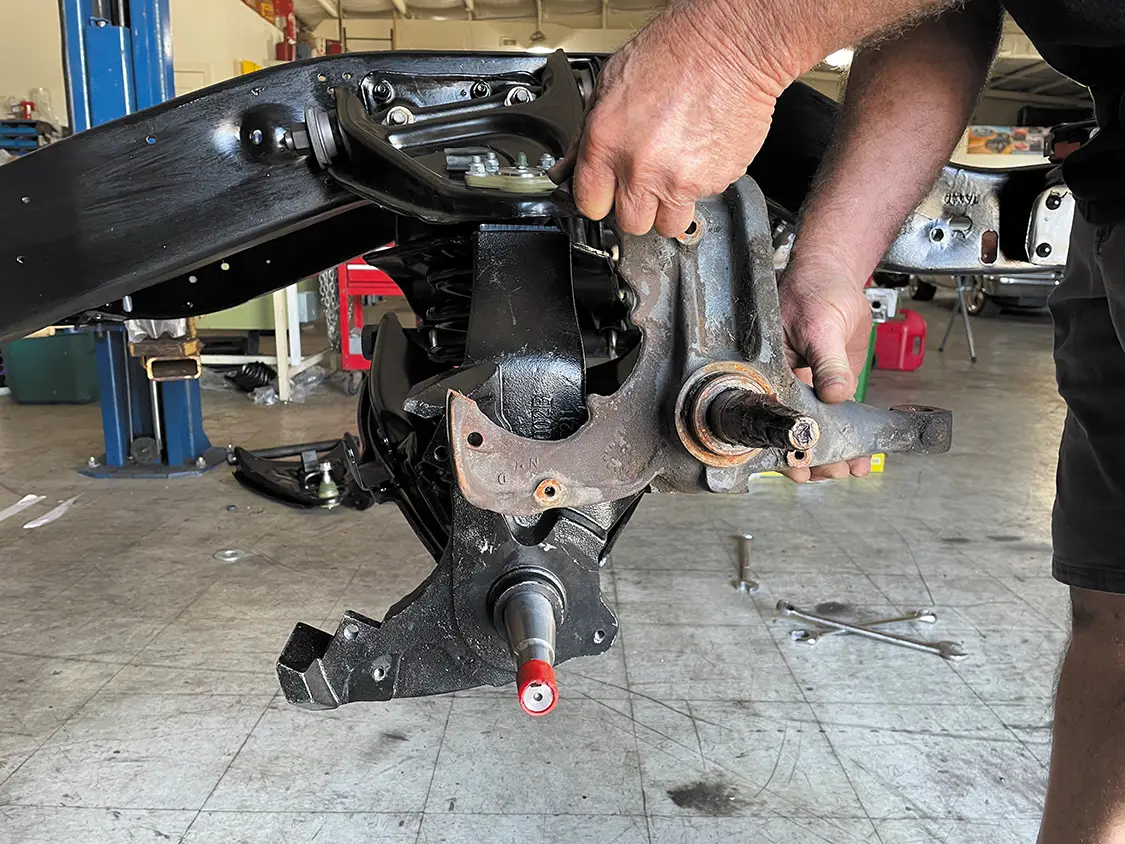

To achieve the lift we are looking for, you will need to order lift spindles for 1988-’98 trucks from Rough Country. The part number is 7500. Note, the tie rod hole will need to be taper reamed from above and ¼ inch of material removed to fit the 1973-’87 tie rod.

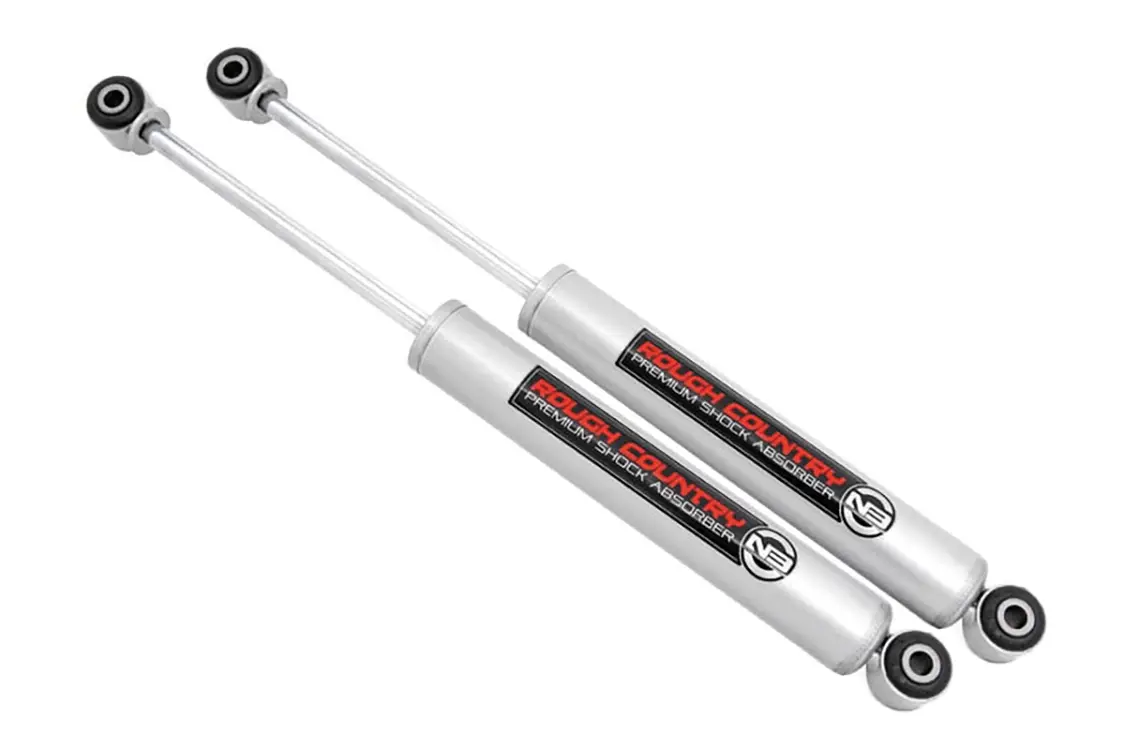

For shocks, we also ordered these extended shocks from Rough Country.

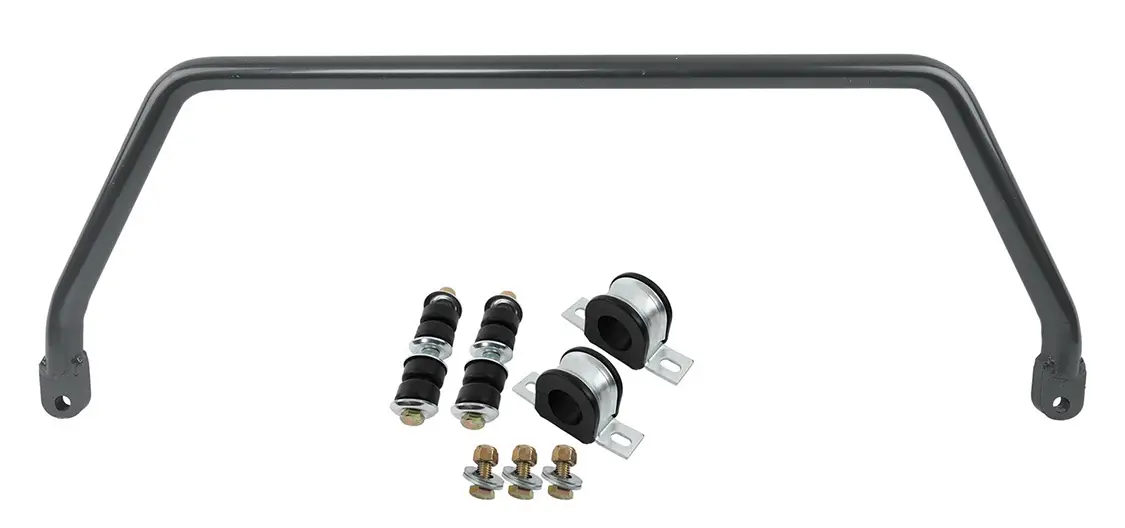

We recommend adding a sway bar from Belltech. The part number is 5404. You can reuse the stock bar if desired.

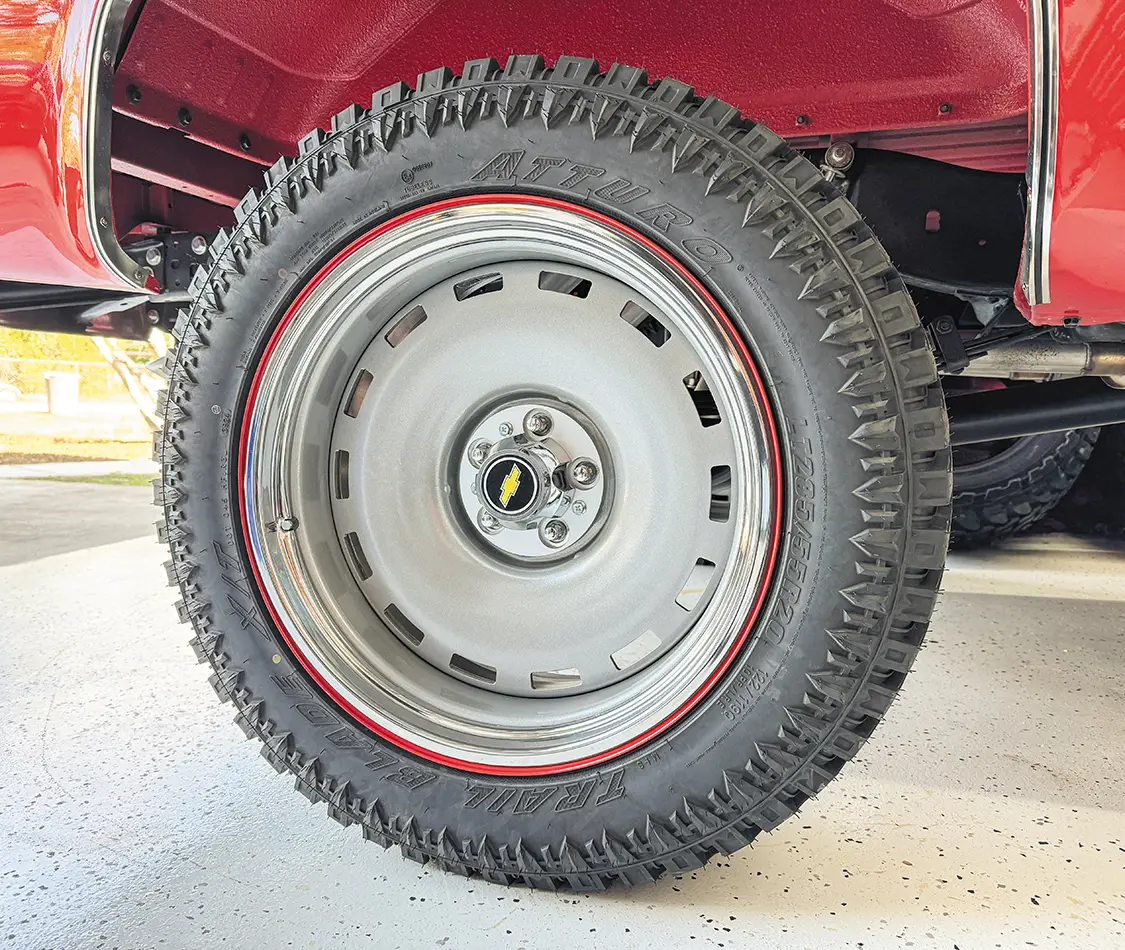

Now let’s talk about wheels and tires. We ordered a set of 20×10-inch wheels from Detroit Steel Wheel. These wheels have a 4.5-inch backspacing, which gives us 6.5 inches of forward space.
When ordering these wheels, we went with the optional painted lip to match the truck color as well as the chrome trim ring and Chevy center cap. They look so good!

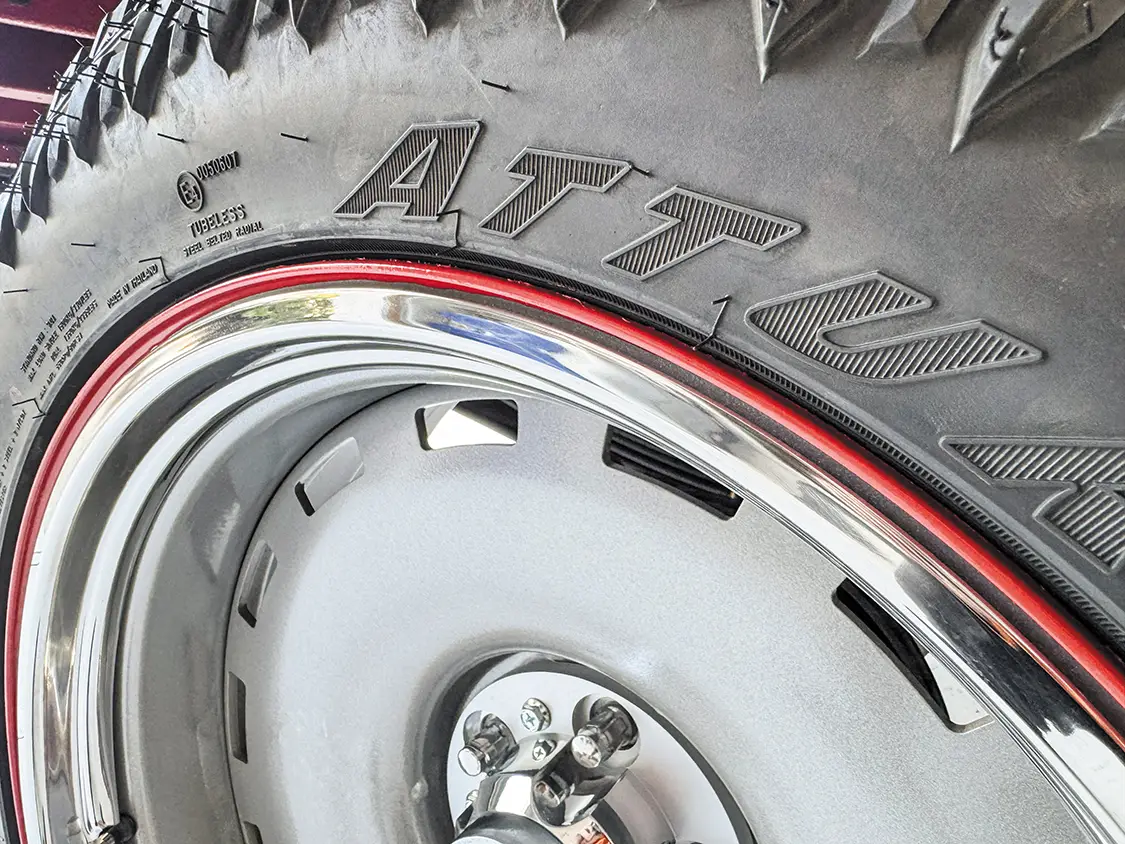

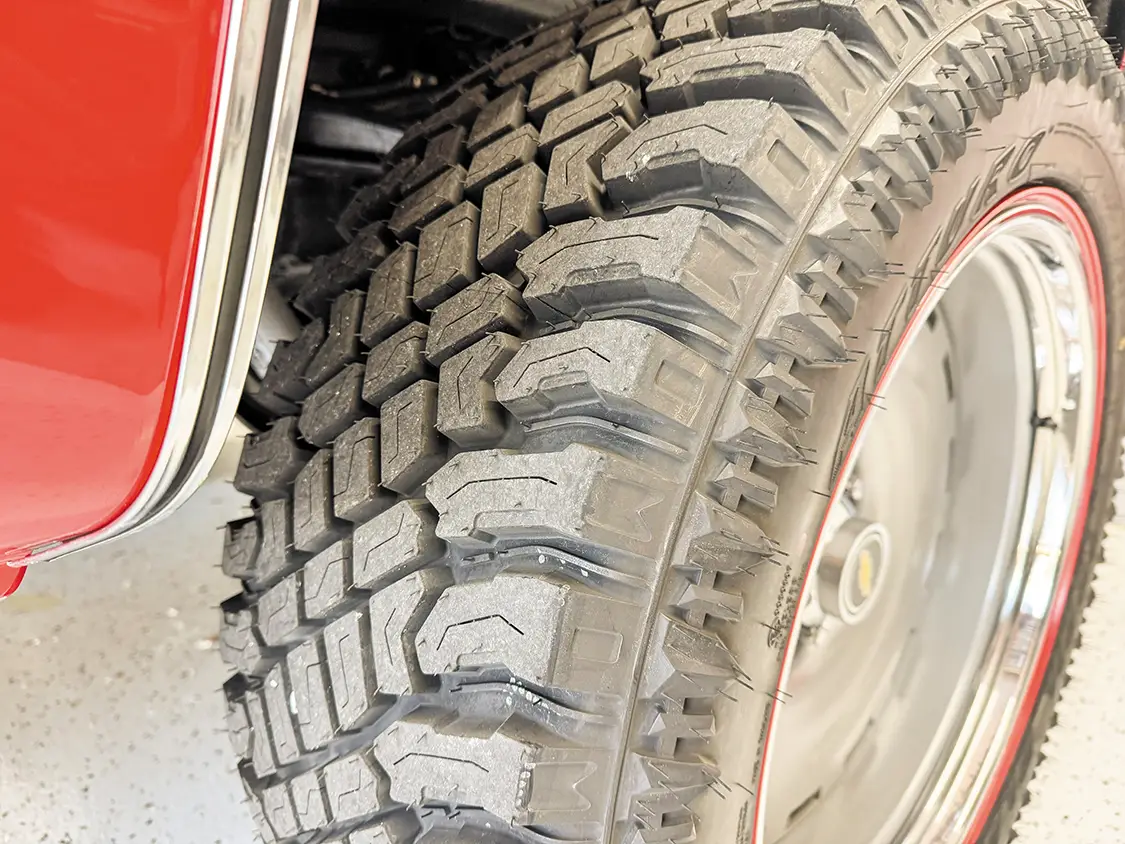

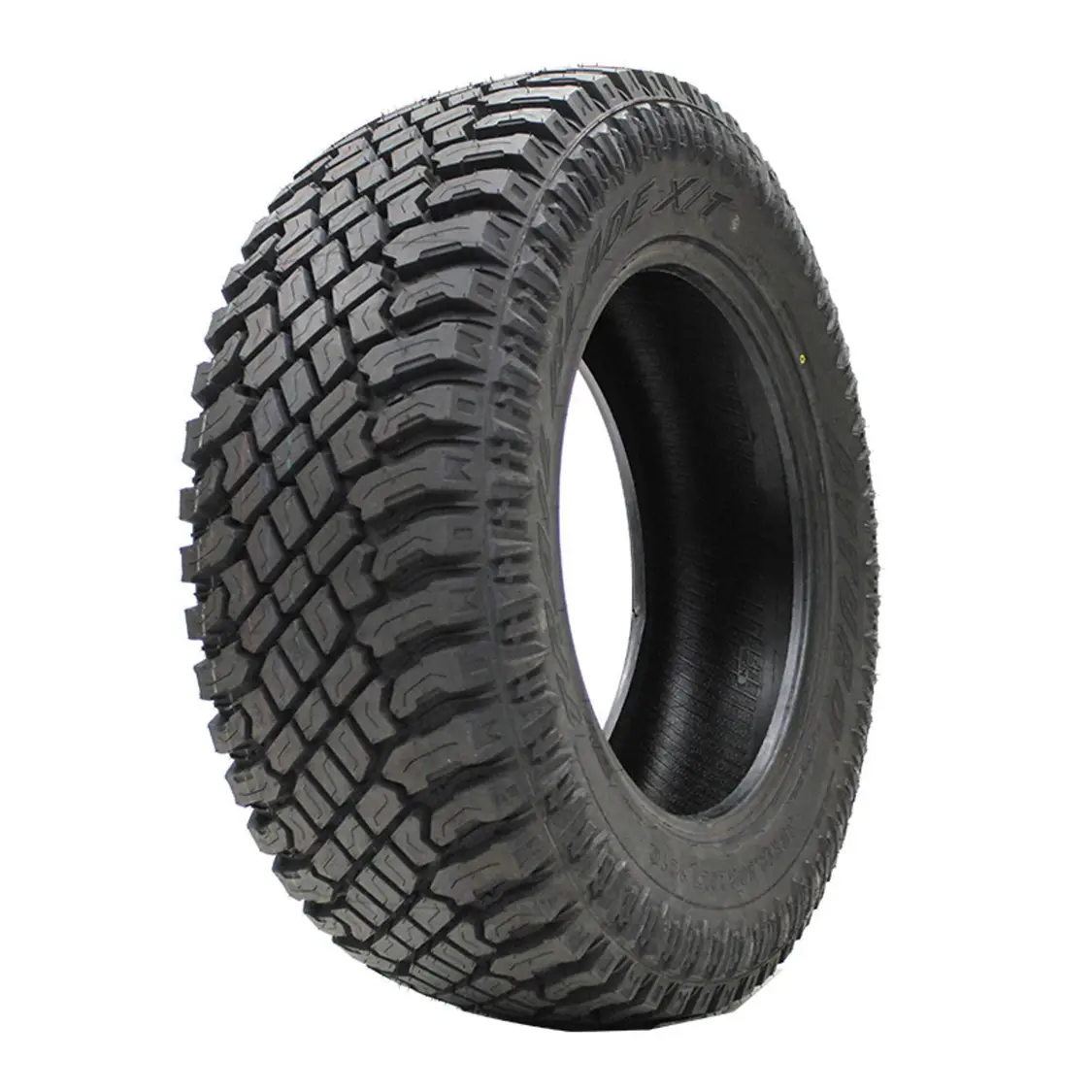

For tires, we used Atturo LT285/55R20 Trail Blade X/Ts. These measure 32.34 inches tall and 11.22 inches wide.
